Lighting Tower
Portable lighting tower with 4 x 200W LED heads, 5.4m hand-operated mast, and Yanmar diesel engine for reliable site illumination.
AVAILABLE FOR PURCHASE OR HIRE – CONTACT US FOR PRICING

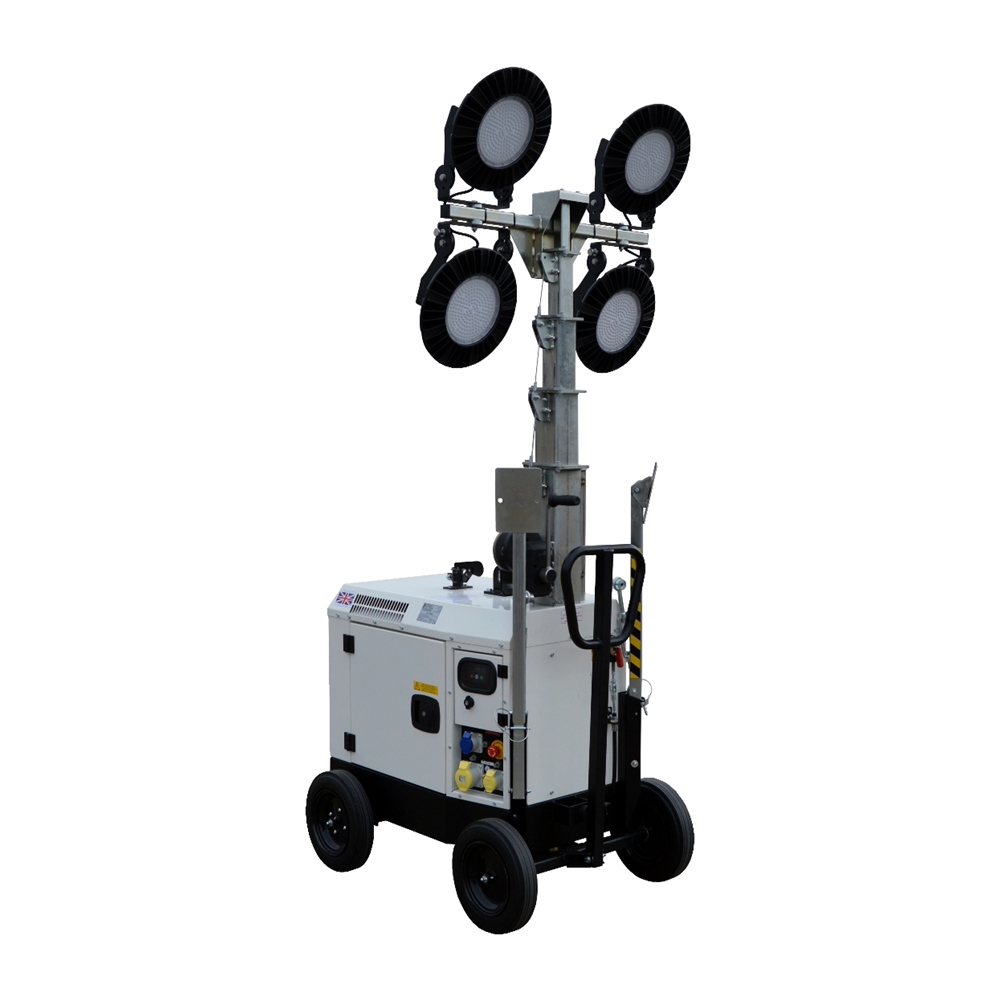

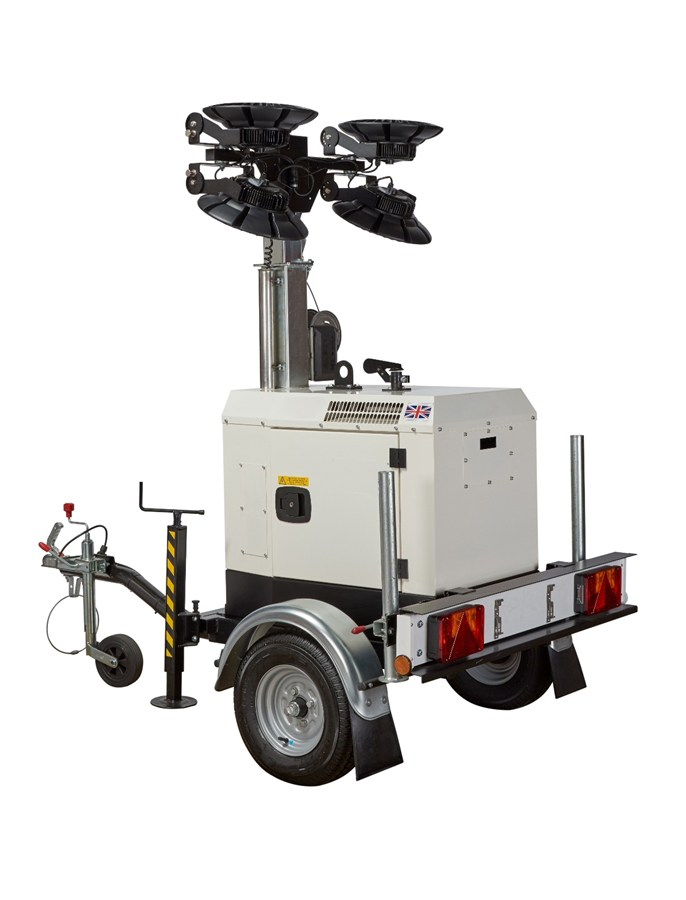

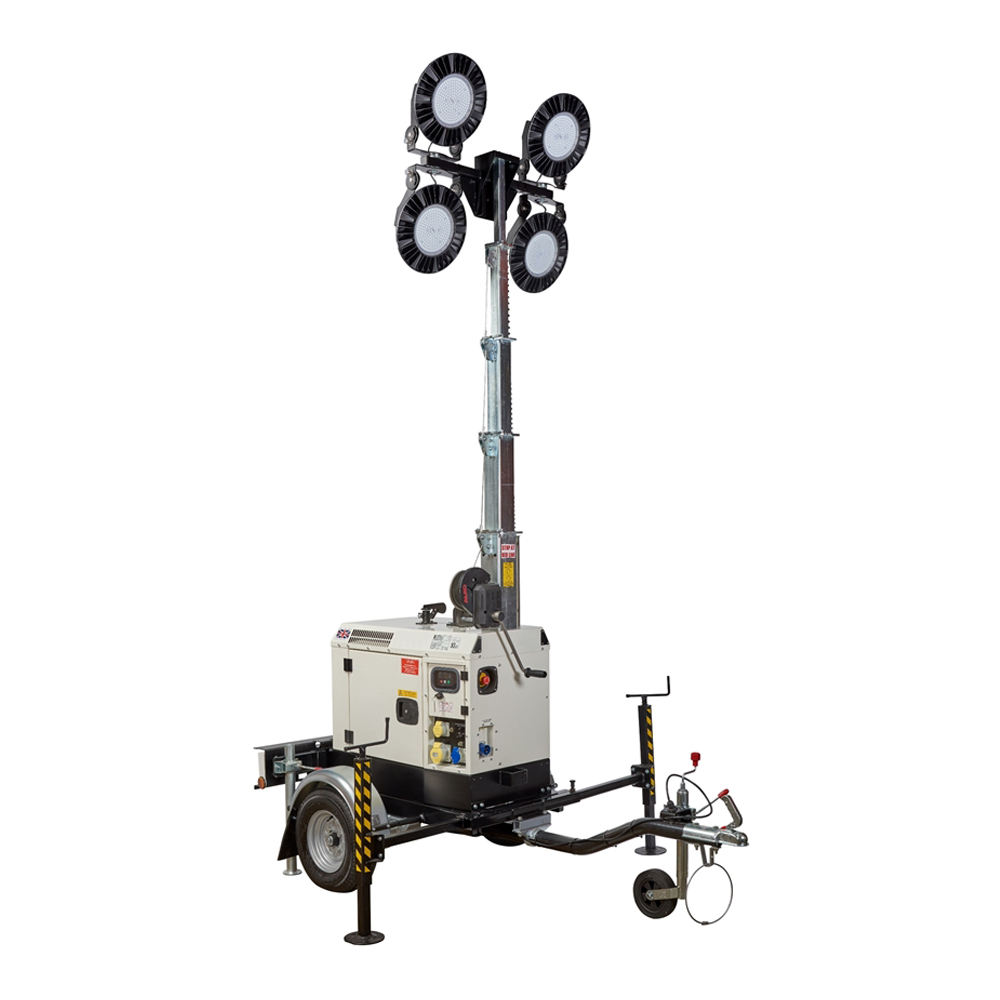

This compact, highly portable lighting tower is designed to provide powerful and reliable site illumination. Featuring four 200-watt LED lighting heads mounted on a 5.4m hand-operated mast, it can be quickly and easily erected by a single operator.
The lighting system is extremely versatile, operating on either 115V or 230V AC generator outputs, making it suitable for a wide range of construction, industrial, and event applications. Powered by a Yanmar L70 electric-start air-cooled diesel engine coupled to a Meccalte alternator, this unit delivers dependable performance even in demanding site conditions.
For added safety, the latest model includes a mast anti-collapse safety device as standard.
Key Features:

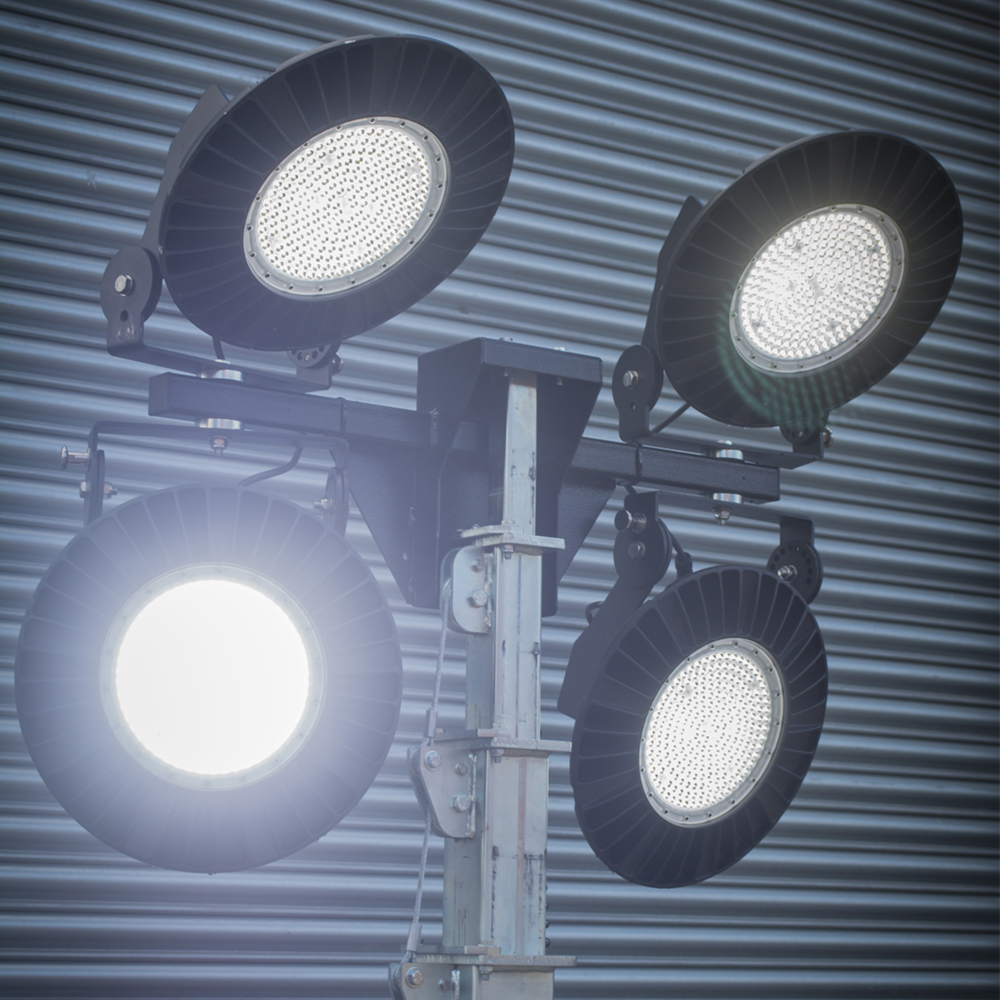

- 4 x 200W high-performance LED lighting heads.
- 5.4m manual mast, easily operated by one person.
- Dual voltage: 115V or 230V AC output compatible.
- Yanmar L70 electric-start diesel engine with Meccalte alternator.
- Compact and portable – easy to move and set up on site.
- Mast anti-collapse safety device fitted.
Ideal for construction sites, roadworks, industrial facilities, and outdoor events, this lighting tower combines portability, reliability, and safety for effective illumination wherever it’s needed.
DIMENSIONS |
|
|---|---|
| Transport Mode | 1200mm (L) x 860mm (W) x 1930mm (H) |
| Fully Deployed | 1660mm (L) x 1940mm (W) x 5400mm (H) |
GENERAL SPECIFICATION |
|
|---|---|
| Voltage | 230/115 |
| Phase | 1 |
| Frequency | 50Hz |
| Prime Power (PRP) | 4.5 kVA / 3.6 kW |
| Alternator | Meccalte S16W-130 |
| Fuel tank capacity | 34.0 Litres |
| Autonomy 75% load | 29 Hours |
| Autonomy @ 800W | 52 Hours (lights only) |
| LWA | 93 |
| dBA @ 7M | 68 |
LAMPS & MAST SPECIFICATION |
|
|---|---|
| Lamp Type | LED |
| Lamp power | 4 x 200W |
| Lumens | 100,000lm |
| Colour Temperature | 5,000 – 6,500K* |
| Ingress protection | IP66 |
| Mechanical impact | IK10 |
| Mast Height | 5.4 Metres |
| Winch Load Rating | 900 Kg |
| LWA | 93 |
| Winch Cable | Stainless Steel |
* Colour temperature is measured in degrees kelvin and denoted by a numerical figure followed by the letter ‘k’. The LED lamps used on this set emit a “white light” similar to that of daylight.
