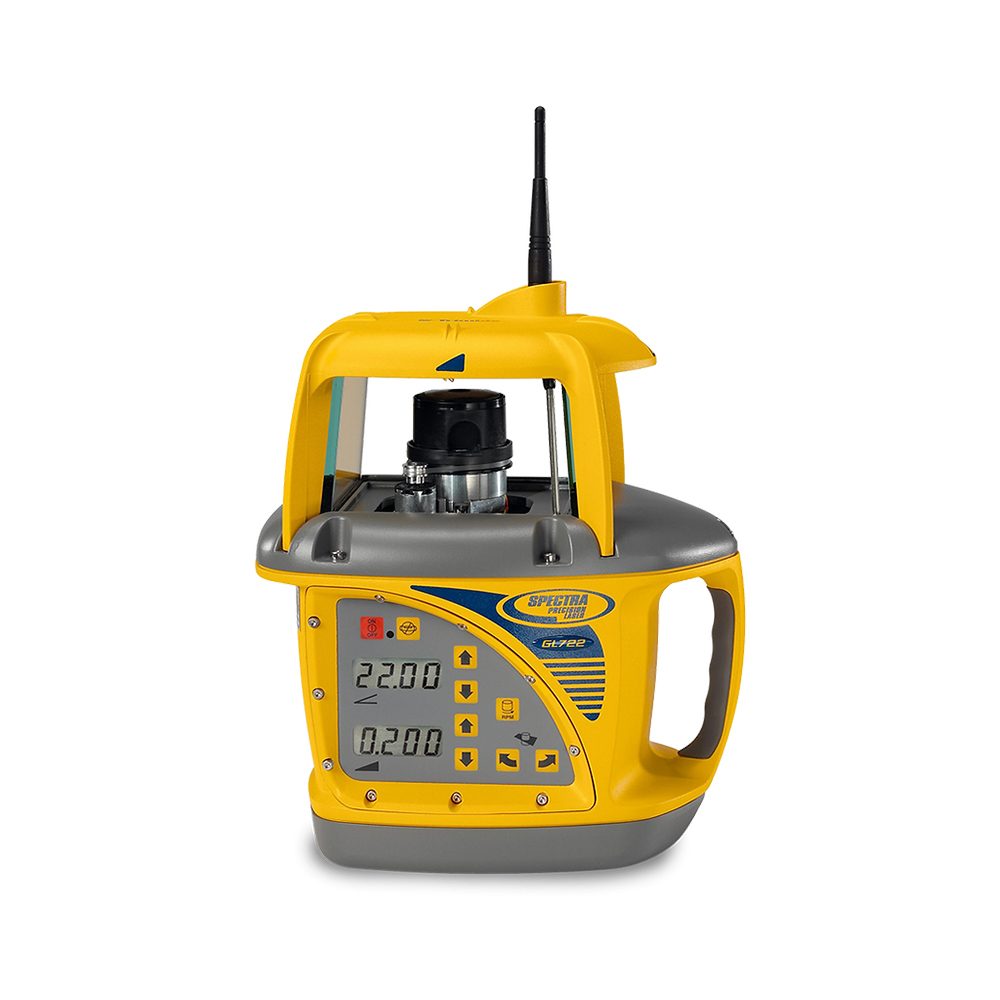

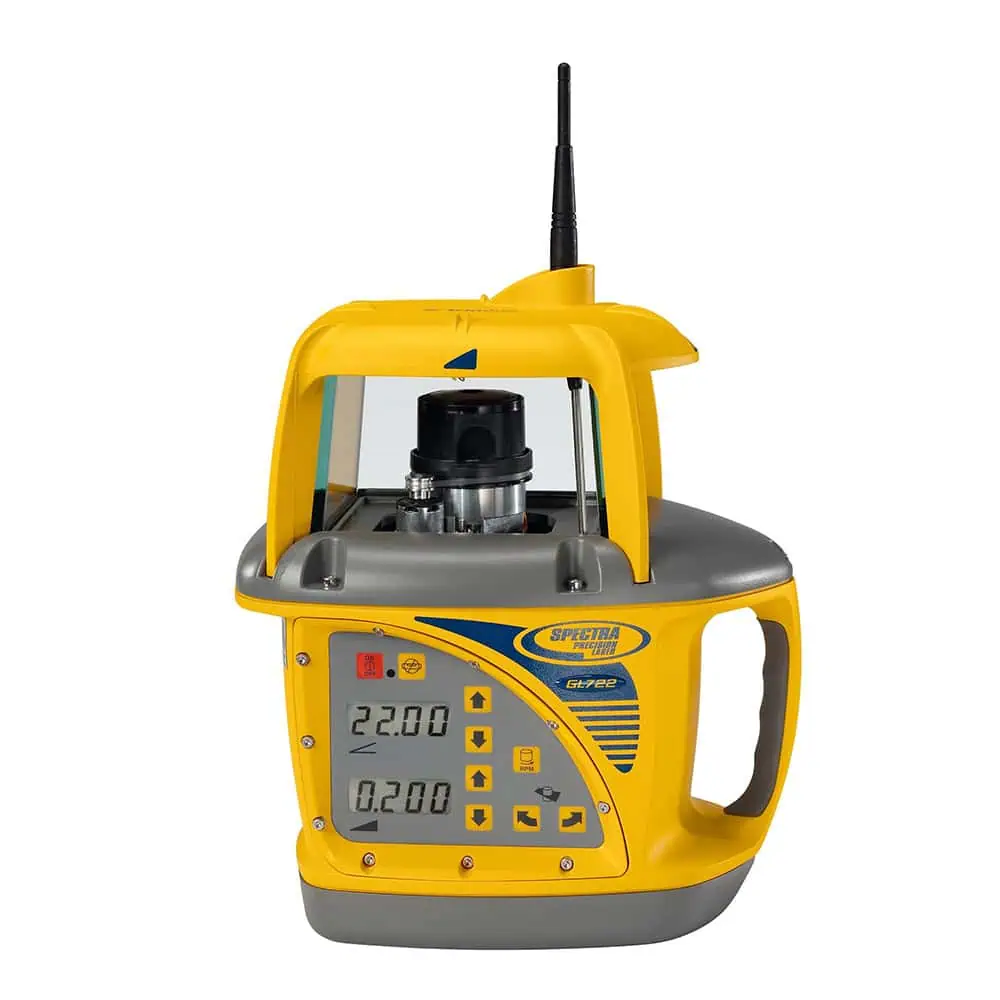

The GL722 dual grade laser is one of the most advanced grade lasers on the market. The long range operation, advanced radio remote, grade matching, Planelok and Automatic Axis Alignment features mean that you can do quick but highly accurate set-ups for any grade application.
The GL722 dual grade laser is one of the most advanced grade lasers on the market. The long range operation, advanced radio remote, grade matching, Planelok and Automatic Axis Alignment features mean that you can do quick but highly accurate set-ups for any grade application.
GL722 SPECIFICATIONS |
|
|---|---|
| Grade Range | Axis Grade Range X -10 to +10% |
| Axis Grade Range Y | -0.500 to +25% |
| Self-Levelling | Self-level to 25% |
| Grade Resolution | 0.001% Servo Deadband Accuracy 4.6 arc seconds |
| Laser Classification | CDRH II (IECI) |
| Range/Radius | Laser – 450 m (1500 ft) with Spectra Precision Lasers machine-mounted receivers |
| Mounting Threads | 5/8” x 11” |
| Waterproof Housing | Waterproof Aluminium Housing |
| Weight | 8.5 kg (18.8 lbs.) |
| Height | 29.8 cm (11.75 in) |
| Width | 25.4 cm (10.0 in) |
| Depth | 19.7 cm (7.75 in) |
| Receiver | Comes with CR600 Receiver |
